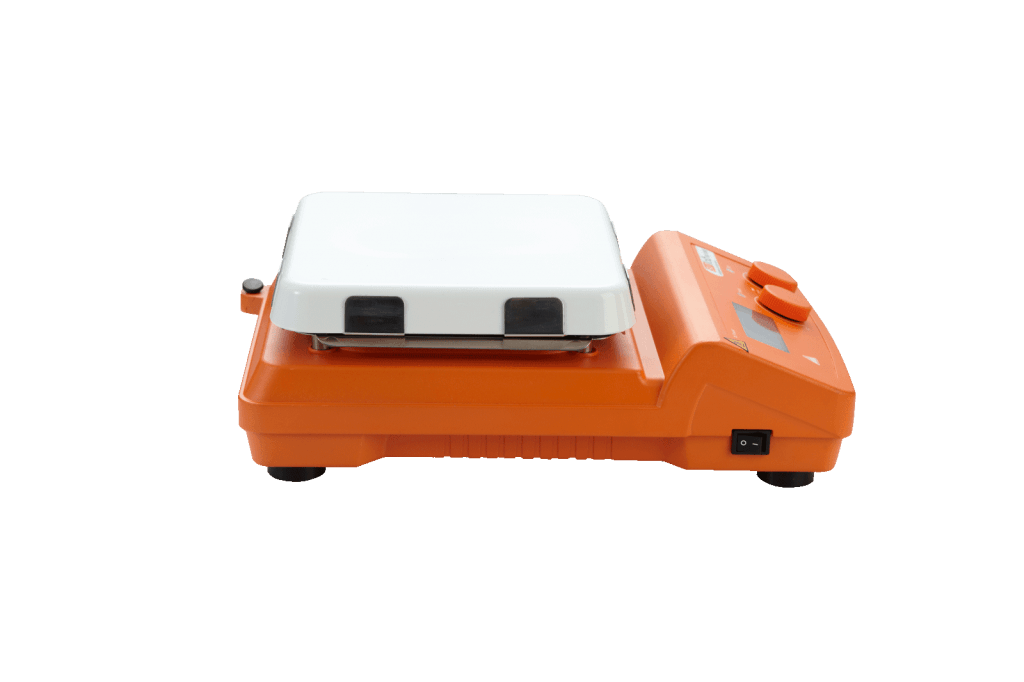

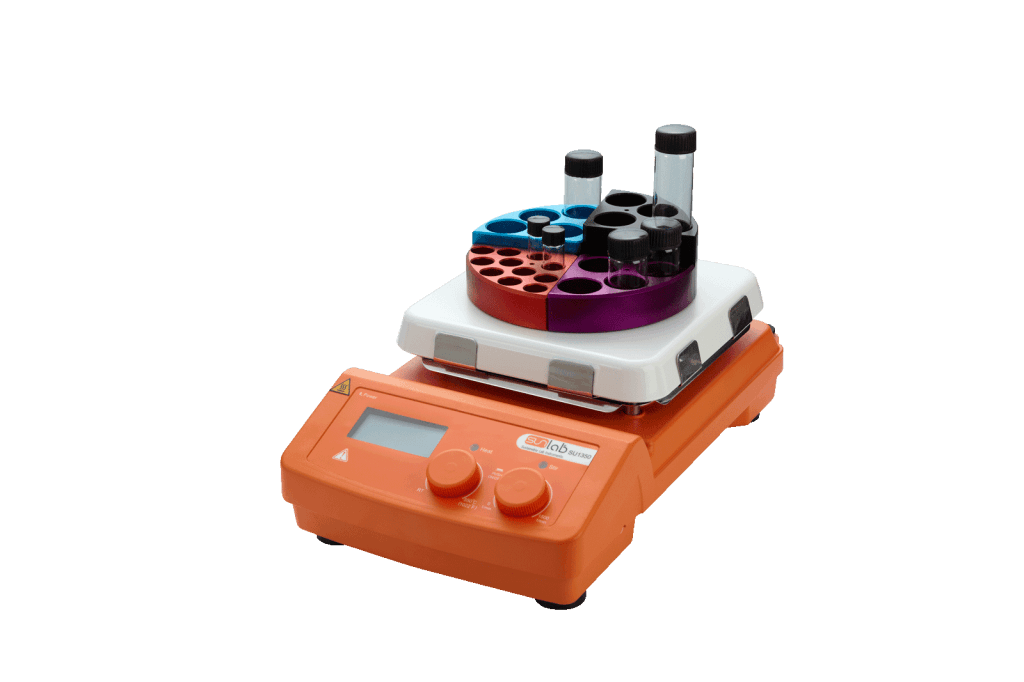

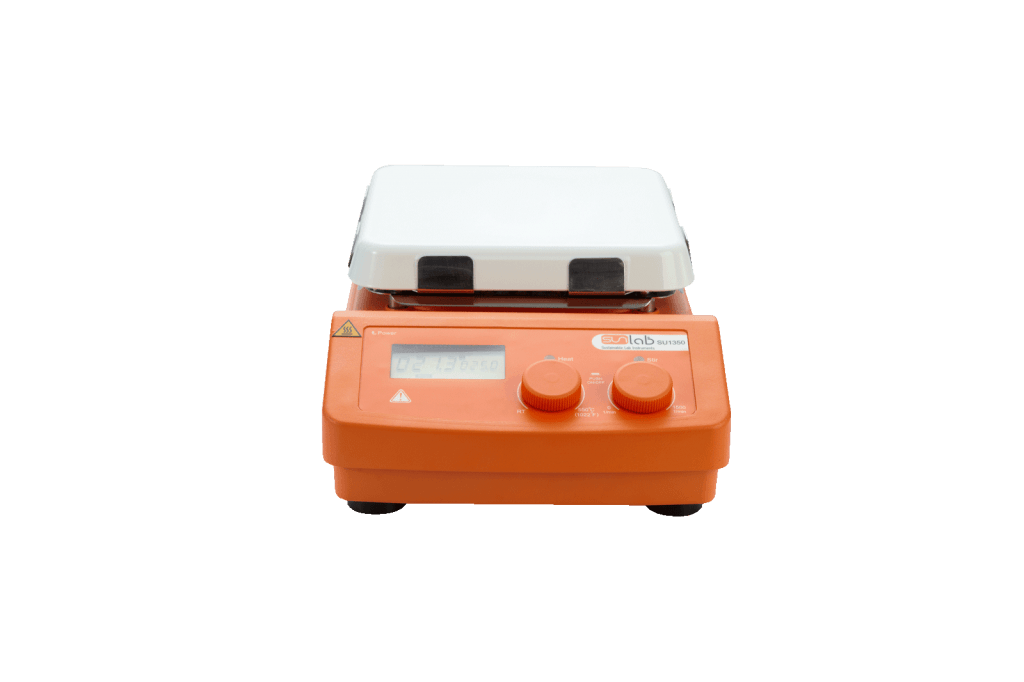

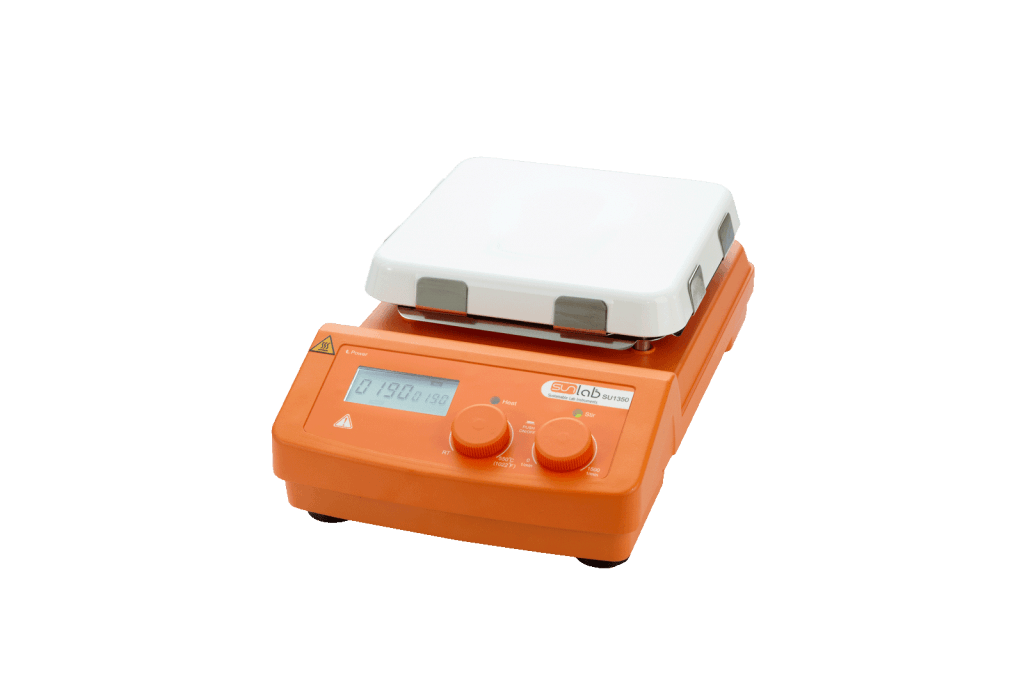

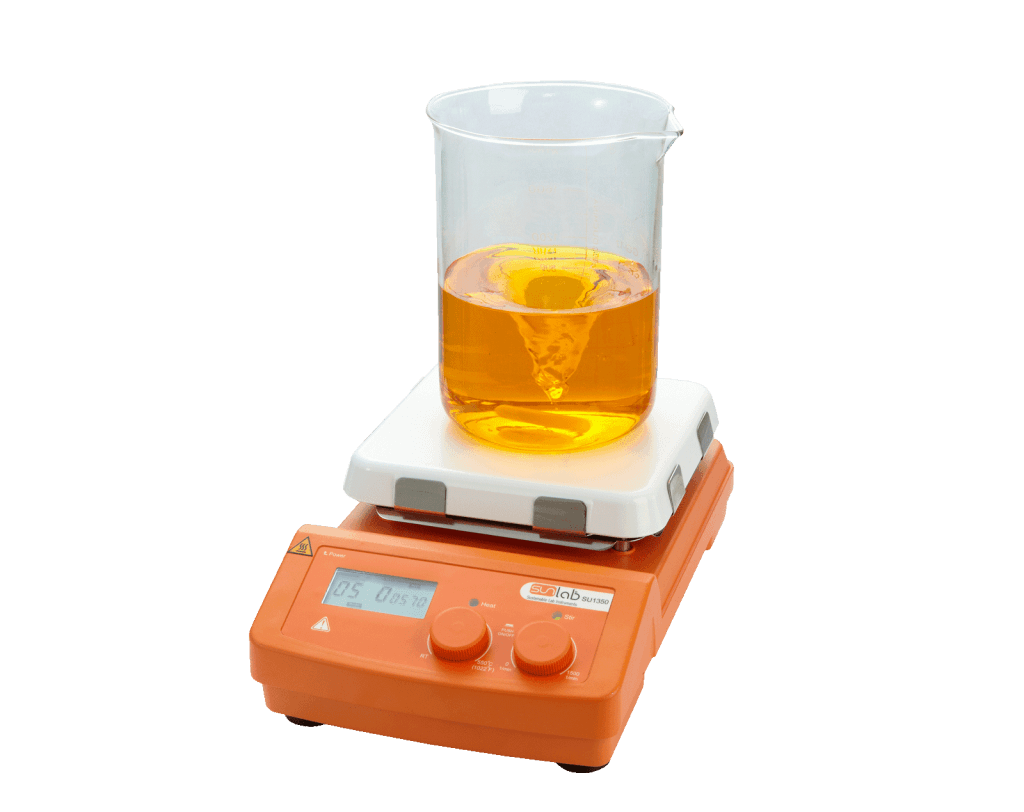

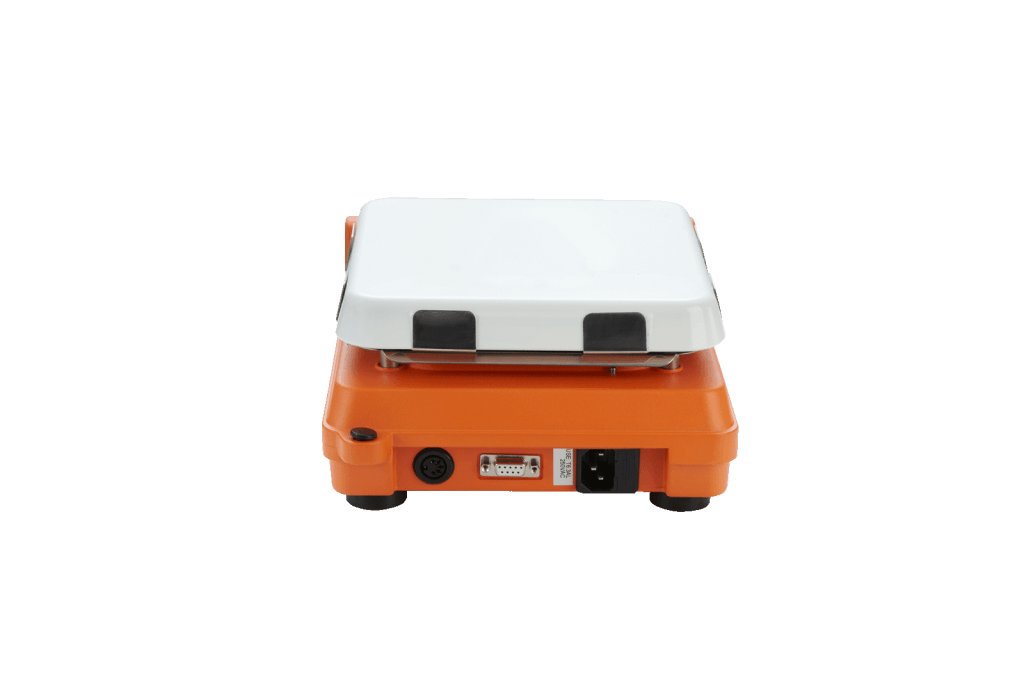

<h1 style=”text-align: center;”>Sunlab Magnetic Stirrer (LCD) with Glass-Ceramic Heatingplate</h1>
Digital magnetic stirrer with glass-ceramic heatingplate, LCD display and max. heating temperature of 550°C. RpM infinitely variable from 0-1500 rpm., suitable for up to 10 ltr. stirring volume. The glass-ceramic plate is extremly corrosion resistant as well as easy to clean. The LCD- Display provides the user with temperature and rpm information and setting. The magnetic stirrer is suitable for stirring bars up to 80 mm length.
Scope of delivery:
For more informations to this product, please contact us.
- Datasheet
- Supplies
| Sunlab Modell | SU1300 |
| Voltage: | 220-240 Volt, 50-60 Hz |
| Rpm: | 0-1500 |
| Motor: | AC motor |
| Interface: | RS232C |
| Heating plate: | 184 x 184 mm |
| Material Plate: | Glass-ceramic |
| Max. heatingtemperature: | 550˚C |
| Temperature accuracy: | +/-10 ˚C |
| Temperature safe guard: | 580°C |
| Residual heat indicator: | >50˚C |
| Dimensions: | 21.5 x 36 x 11.2 cm |
| Weight: | 5.3 kg |
| Perm. ambient temperature | +5 to +40˚C |
| Maximum permissible rel. humidity: | max 80% |
| Certifications: | DIN EN60529, IP21 |
Clamp for temp. probe and rod
Reaction block for 250 ml flask
Reaction block for 500 ml flask

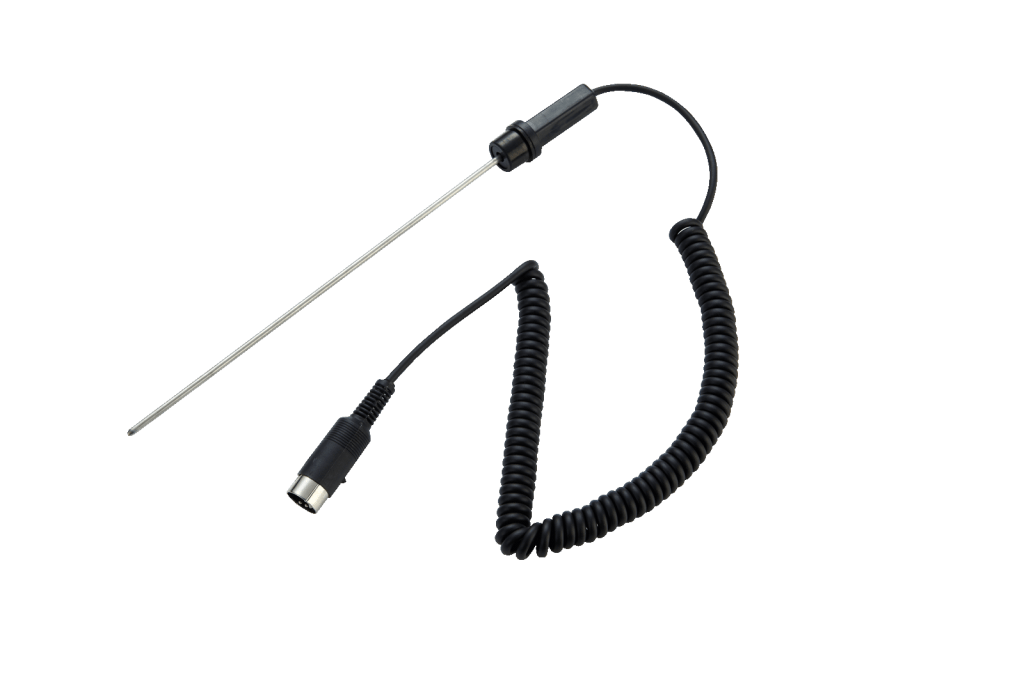

Temperature sensor
